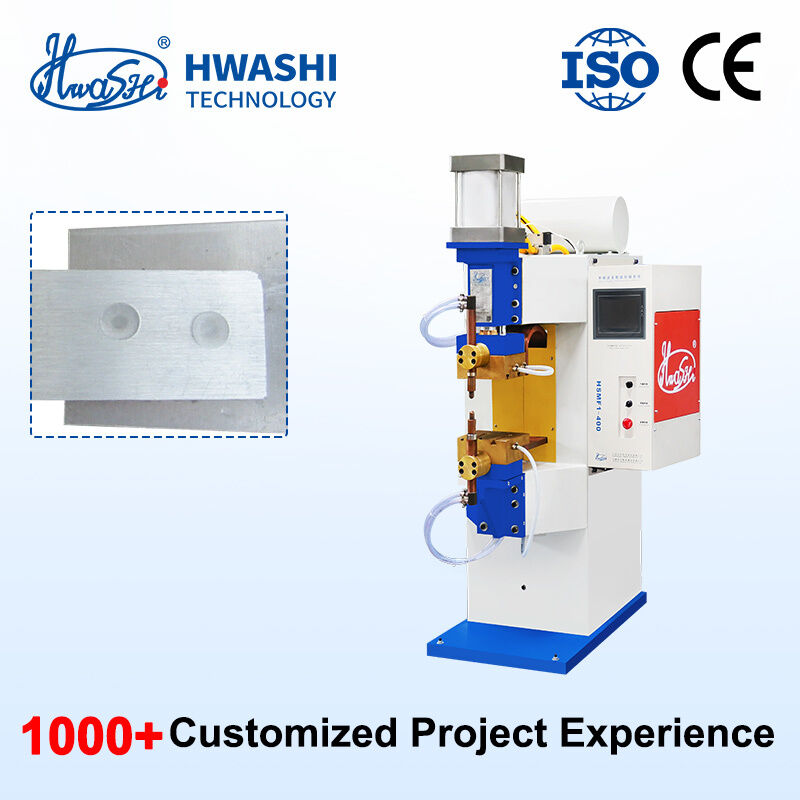

Name: Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-MF-90K/160K
Price: 14,000.00 USD
Availability: InStock

Дом > Продукты > Сварочный аппарат пятна >

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified

1000Hz Technology Spot Welding Machine

Adjustable Control System Medium Frequency DC Welding Machine

Three-Phase Power Supply AC Spot Welder

Место происхождения:

Китай

Фирменное наименование:

HWASHI

Сертификация:

CE/CCC/ISO

Номер модели:

WL-MF-90K/160K

Свяжитесь мы

Спросите цитату

Детали продукта

Название продукта:

Сварочный аппарат DC средней частоты

Приложение:

сваривать медной алюминиевой стали

Размер:

850x900x1850*мм

Масса:

450 кг

Состояние:

Новый

Гарантия:

12 месяцев

Стандартный:

CE/CCC/ISO

Срок службы:

8-10 лет

Условия оплаты & доставки

Количество мин заказа

1 комплект

Цена

лично переговорить

Упаковывая детали

Деревянный пакет моря

Время доставки

7-30 рабочих дней после получения оплаты

Условия оплаты

Л/К, Т/Т

Поставка способности

50 комплектов в месяц

Родственные продукты

Видео

Hwashi AC Spot Welding Machine with Thermal Overload Protection and Voltage Reduction Device for Industrial Applications

Получите самую лучшую цену

Видео

Medium Frequency DC Spot Welding Machine with 1000Hz Inverter Technology and Adjustable Control System for Sheet Metal CE/CCC/ISO Certified

Получите самую лучшую цену

Видео

Сварочный аппарат точечной сварки HWASHI WL-MF-250K вертикального типа со среднечастотным инвертором и технологией 1000 Гц для стабильной сварки металлических листов

Получите самую лучшую цену

Видео

Сварочный аппарат точечной сварки HWASHI WL-MF-250K вертикального типа со среднечастотным инвертором и технологией 1000 Гц для стабильной сварки металлических листов

Получите самую лучшую цену

Свяжитесь мы

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Контакт теперь

Характер продукции

Power Frequency AC Spot Welder for Sheet Metal

This professional power frequency AC spot welder is engineered for precision spot welding of various sheet metals. It combines reliable performance, easy operation, and high efficiency to meet diverse needs in sheet metal processing industries.

Advanced Welding Technology

Utilizing mature power frequency AC technology, this machine delivers stable and uniform current output, ensuring firm welding joints with high bonding strength and excellent fatigue resistance. It's suitable for welding carbon steel sheets, stainless steel sheets, galvanized sheets, and aluminum alloy sheets with thickness ranges from 0.3-3.0mm.

Precision Control System

The adjustable control system allows flexible setting of welding current, welding time, and electrode pressure. These parameters can be precisely adjusted according to material type and thickness, effectively preventing welding defects such as false welding, burn-through, and uneven welding points.

Intelligent Welding Control System

Input and read welding parameters with precision control

Premium Raw Materials

Thicker copper plates or copper belts ensure stable conductivity during welding operations

Custom Electrode Processing

Customized electrodes suitable for various materials including steel, aluminum, silver, stainless steel, and nickel steel

Optimized Structure & Welding Methods

Designed with appropriate machine shape and molds according to specific welding product requirements

Key Features

Three-phase power supply with grid balance and minimal grid impact
High power factor of 0.7-0.9, significantly reducing reactive power loss
Enhanced welding control accuracy with inverter frequency above 1000Hz

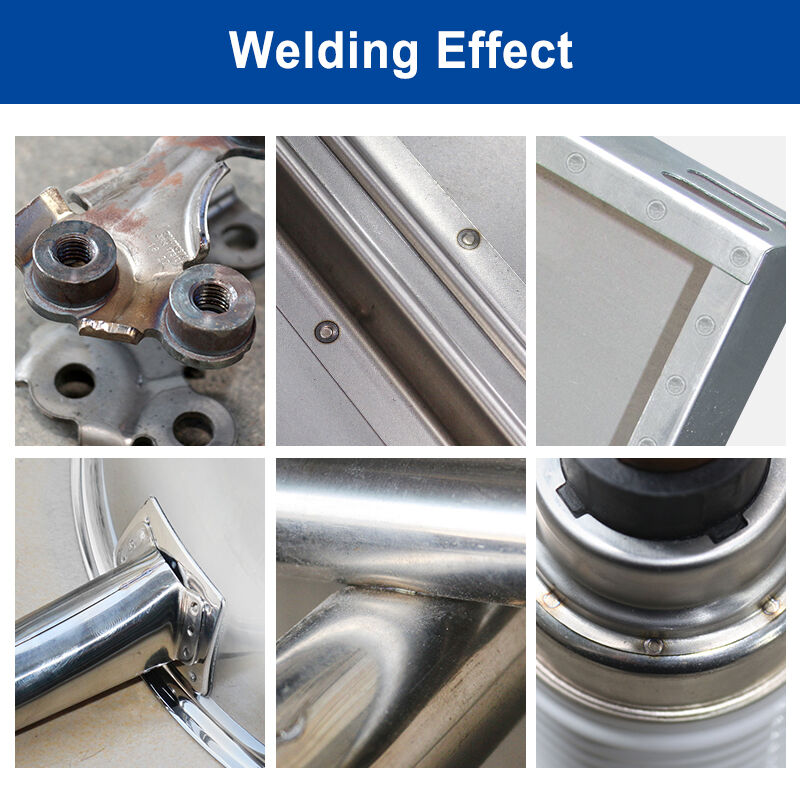

Superior welding quality with stable nugget size and minimal spatter
Energy efficient operation with reduced grid power demand
User-friendly interface with multiple welding specifications storage
Real-time monitoring of welding current, time, pressure, and cooling flow

Technical Specifications

Model	WL-MF-100K
Input Power (V/φ)	380/3
Rated Power (KVA)	100
Applicable Material	Stainless Steel, Carbon steel, Aluminum, Metal
Max Short Circuit Current (KA)	21
Electrode Force (KG)	1000
Electrode Stroke (MM)	100
Dimension(LWH)	950mm800mm1675mm
Warranty	1 years

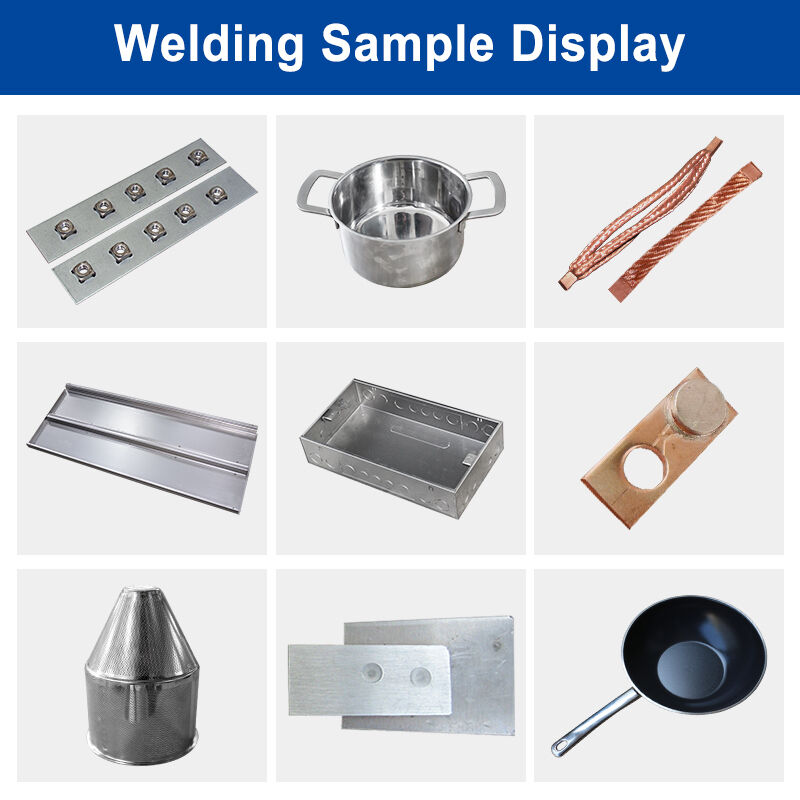

Application Examples

This power frequency AC spot welder offers stable performance, high welding efficiency, and strong adaptability, making it a cost-effective solution for sheet metal processing enterprises. It improves production efficiency, reduces labor intensity, and ensures superior welding quality to enhance market competitiveness.
