From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

seven axis welding machine

double head door frame welder

stainless steel precision welder

Place of Origin:

China

Фирменное наименование:

hwashi

Сертификация:

CE/CCC/ISO

Model Number:

WL-SQ100K

Свяжитесь мы

Спросите цитату

Детали продукта

Model:

WL-SQ100K

Conductive Way:

Both-Sided

Rated Capacity:

160kVA X2

Applicable Material:

Stainless Steel, Carbon steel, Aluminum, Metal

Welding Method:

Resistance Touch Welding

Max.Welding Thickness:

2+2mm

Warranty:

1 years

Условия оплаты & доставки

Minimum Order Quantity

1 set

Цена

лично переговорить

Packaging Details

sea worthy wooden package

Delivery Time

60 working days after received your payment

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

Родственные продукты

Видео

Прочная настольная сварочная машина с С-образным рычагом для точечной сварки для задач прецизионной гибки

Получите самую лучшую цену

Видео

Stainless Steel Welding Machine for Heavy-Duty Structural Reinforcement Applications

Получите самую лучшую цену

Видео

Maximize Productivity Minimize Errors Hwashi’s Seven Axis Double Heads Spot Welder

Получите самую лучшую цену

Видео

From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

Получите самую лучшую цену

Свяжитесь мы

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Контакт теперь

Характер продукции

From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding

Product Description

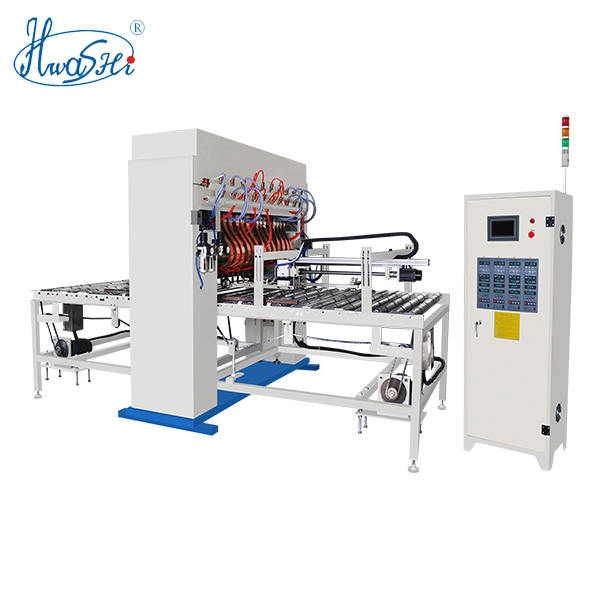

CNC 7 Axi Double Head Automatic Spot Welding Machine adopts two sets of welding mechanism with CNC servo system, including X direction for the welding movement , Y direction for the table movement, through the XY direction to achieve welding of different positions. Welding mechanism can also operate Z direction lifting and A direction rotation, with CNC system to control seven axis to achieve the movement of different positions for the welding mechanism.

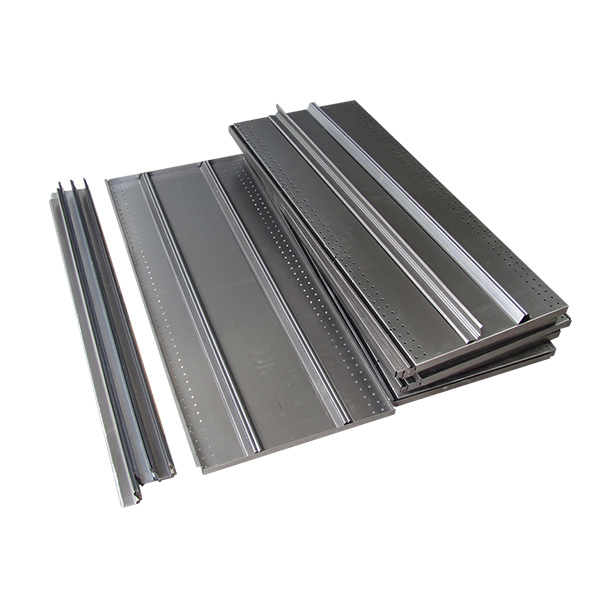

This machine adopts medium frequency inverter DC welding power. The equipment can realize the automatic welding production of Door Tube Frame or the reinforment panel or stiffeners to steel door. It can automatically move and weld according to the position set by the program, and the operator only needs to manually load and unload the product. The equipment improves the product quality and production efficiency, reduces the production cost, solves the defects such as the unstable quality of manual work and low production efficiency, with higher the production efficiency and automation degree.

From Speed to Precision Hwashi Seven Axis Double Heads Transform Door Frame Welding 1

Unparalleled Efficiency with Double - Head Design

Simultaneous Welding Operations

The double - head configuration of this spot welding machine allows for two - point welding simultaneously. This significantly reduces the cycle time compared to single - head spot welders. For door tube frame production, where multiple welds are required at different points on the frame, the double - head design enables a substantial increase in output. For example, in a typical production line where a single - head welder might take 10 seconds to complete a set of welds, the Hwashi double - head machine can achieve the same in just 5 seconds, effectively doubling the production rate.

Enhanced Productivity in High - Volume Production

In large - scale door manufacturing plants, time is of the essence. The Hwashi CNC spot welding machine is engineered to handle high - volume production with ease. Its ability to perform rapid and accurate spot welds at a faster pace means that more door tube frames can be produced within a given time frame. This not only boosts overall productivity but also helps manufacturers meet tight deadlines and fulfill large orders efficiently.

Item	Parameter
Rated Power	120KVA*2
Duty Cycle	50%
Effective welding length	1200mm (Customized)
Effective welding width	2200mm (Customized)
Welding Driving Power	Servo System
Max. Moving Speed	500mm/s
Machine Dimension	L3800mm*W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25ºC
